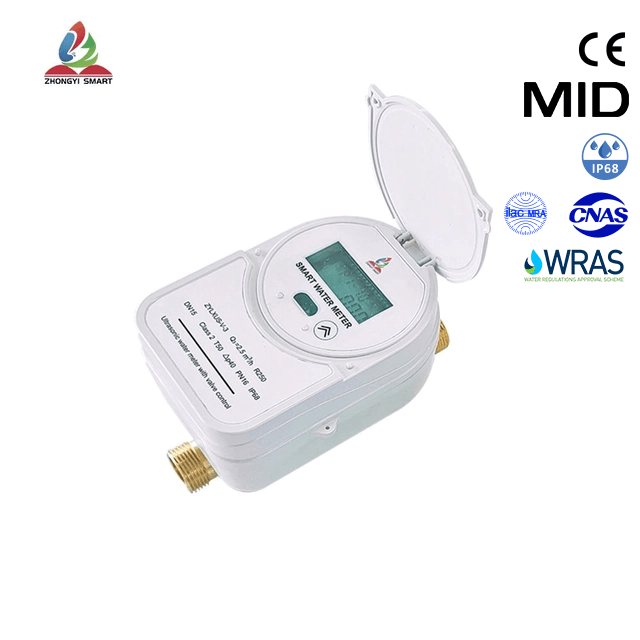

Smart ultrasonic valve controlled water meter
Smart ultrasonic valve controlled water meteruses the difference in ultrasonic propa.gation time in liguid to determine theaveege flowvelocity of the liguid, thereby calculating the liquldflowrate.it has the advantages oflowstarting flow,.wide range ratio, high accuracy, high stability andhigh rellabllity
Introduction
Foreword
Ultrasonic Water MeterValve-controlled) uses the difference in ultrasonic propa.gation time in liguid to determine theaveege flowvelocity of the liguid, thereby calculating the liquldflowrate.it has the advantages oflowstarting flow,.wide range ratio, high accuracy, high stability andhigh rellabllity
Features
There are no moving parts,no mechanicalwear, low pressureloss,range ratio R250/R400,dripping metering, leakagedetection,protection up to lP68, stable siqnal.
Structure design
Highly sensitie buttons, infrared support, easy installation.
waterproof design, ABS shell is anti-corrosionand anti-ust.
Parameter
Key attributes
Industry-specific attributes
type
Ultrasonic meters
Protection Class：ip68
Other attributes
place of origin：Jiangsu, China
Warranty：1years
customized support：OBM
brand name：ZHONGYI
model number：DN15
Model：ZYLXUS-V
Nominal diameter：15
Accuracy grade：2
Temperature rating：T30/T50
Pressure of work：2.5Mpa
The pressure loss：≤ 0.015Mpa
Protection grade：IP65
Power supplye：3.6V
Certification：CE/MID
