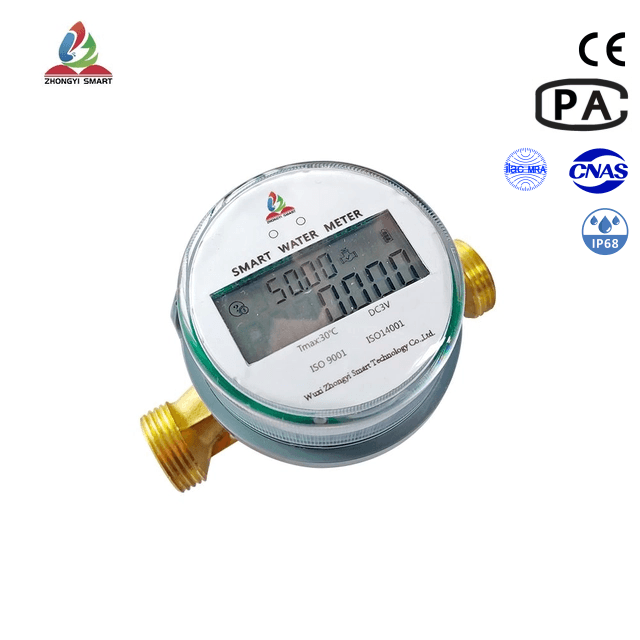

Single flow non-valve water control meter
Foreword Single flow non-valve water control meter adopts a dry mechanical base meterintegrating data storage and remote communica.tion, and has the advantages of good antifreezeultra-low power consumption,high precisionhigh reliability and high stability.
Introduction
Foreword
Single flow non-valve water control meter adopts a dry mechanical base meterintegrating data storage and remote communica.tion, and has the advantages of good antifreezeultra-low power consumption,high precisionhigh reliability and high stability.
Features
The range ratio is optional, ranging from 80 to 160, with protec-tion up to lP68, ultra-low power consumption design, 8-yearservice life. The electromechanical separation structure isadopted, and the electronic part and the base meter part canbe easily disassembled and assembled, which is convenientformeter maintenance and upgrade.
Parameter
Key attributes
Industry-specific attributes
type：single flow water meter
Other attributes
place of origin：Jiangsu, China
Warranty：1years
customized support：OBM
brand name：ZHONGYI
model number：DN15
Model：ZYLXSG-X-A
Nominal diameter：20
Accuracy grade：2
Temperature rating：T30
Pressure of work：1.6Mpa
The pressure loss：≤ 0.1Mpa
Protection grade：IP66
Communication mode：LORAWAN
Power supplye：3.6V
Certification：CE
Material: Brass
Type: Mechanical Single-jet Water Meter
