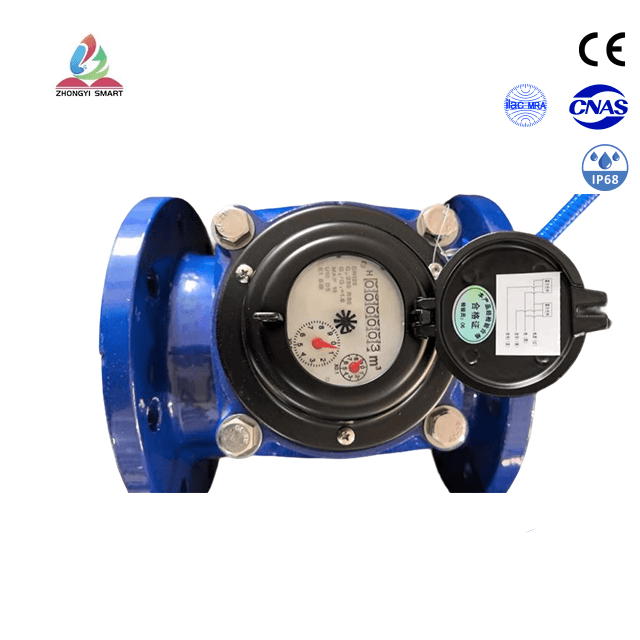

Flanged Mechanical Water Meter
This water meter features a wide measurement range and low starting flow rate. It also combines the advantages of screw turbine water meters, such as high flow capacity and low pressure loss, with the high accuracy of minimum flow measurement found in rotary vane water meters. It uses a special bearing system to enhance wear resistance. In addition, the movement has a detachable structure, making maintenance convenient for users.
Introduction
Foreword
This water meter features a wide measurement range and low starting flow rate. It also combines the advantages of screw turbine water meters, such as high flow capacity and low pressure loss, with the high accuracy of minimum flow measurement found in rotary vane water meters. It uses a special bearing system to enhance wear resistance. In addition, the movement has a detachable structure, making maintenance convenient for users.
Working Principle
Afterthe water flow is adjusted by the rectifier, itimpacts the spirablades to make them rotate. The number of rotations is transmitted to the counter through the worm gear mechanism, therebyrecording the totalamount of water flow
Parameter
Key attributes
Industry-specific attributes
type
large diameter water meter
Other attributes
place of origin：Jiangsu, China
Warranty：1 Year
customized support：OEM
Material：carbon steel
Size：DN50-200
Color：Blue
Temperature：0-30
Pressure：1.6Mpa
LCD display：LCD 8 digit
power supply：3.6 19000mAh
